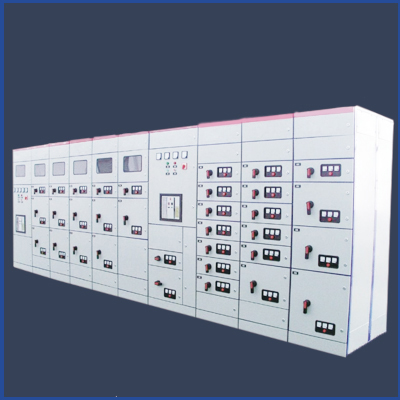

仿威圖柜是方便用戶配電系統的設備，它能夠方便有序的進行配電控制，及時排除隱患，避免事故的發生， 一般的仿威圖柜是對電壓、電流、頻率、有用功率、無用功率、電能、諧波等電力品質做的監控。
The imitation prestige chart cabinet is the equipment convenient for the user's power distribution system. It can carry out power distribution control conveniently and orderly, eliminate hidden dangers in time and avoid accidents. The general imitation prestige chart cabinet is to monitor the power quality such as voltage, current, frequency, useful power, useless power, electric energy and harmonic.
而高壓仿威圖柜是用于電力系統發電、輸電、配電、電能轉換和消耗中起通斷、控制或保護等作用。除此之外，仿威圖機柜是按電氣接線要求將開關設備、測量?jī)x表、保護電路和輔助設備組裝在封閉或半封閉的金屬柜總或屏幅上，構成低壓配電裝置。
The high-voltage power imitation cabinet is used for on-off, control or protection in power generation, transmission, distribution, power conversion and consumption of power system. In addition, according to the electrical wiring requirements, the switch equipment, measuring instrument, protection circuit and auxiliary equipment are assembled on the closed or semi closed metal cabinet assembly or panel to form a low-voltage power distribution device.
而人們口中所說的控制柜、仿威圖柜還有動力柜，原則上是同一個事物，只是說法不同還有外表不同，一般配電箱是比較小的，但仿威圖柜這兩種則是立體型的。下面威柜電氣小編為大家講下仿威圖柜的七大特點，這也仿威圖柜現在被受追捧的原因。
The control cabinet, Weitu imitation cabinet and power cabinet mentioned by people are the same thing in principle, but they have different opinions and different appearance. Generally, the distribution box is relatively small, but the two kinds of Weitu imitation cabinets are three-dimensional. The following is about the seven characteristics of imitation Rittal cabinets, which is also the reason why imitation Rittal cabinets are now popular.
仿威圖柜的特點：
Features of imitation Rittal cabinet:
1.仿威圖機柜結構堅固、美觀、內部安裝空間極大，配件通用程度高；
1. The imitation Rittal cabinet has solid and beautiful structure, great internal installation space and high universality of accessories;
2.仿威圖機柜門三點鎖定門鎖，側板與背板均用螺釘固定；
2. The three-point lock of the imitation Rittal cabinet door, and the side plate and back plate are fixed with screws;
3.仿威圖機柜體框架采用九折式型材焊接一體，框架整體強度高；
3. The cabinet frame of Weitu imitation machine is welded with nine fold profile, and the overall strength of the frame is high;
4.柜門開啟角度130度,無須增加任何配件即可滿足左右開門需要；
4. The opening angle of cabinet door is 130 degrees, which can meet the needs of left and right door opening without adding any accessories;
5.仿威圖機柜柜體、箱門、安裝板上預裝M8接地柱；
5. M8 grounding column is pre installed on the cabinet body, door and mounting plate of imitation Rittal cabinet;
6.整塊安裝板，安裝深度可前后調節；
6. the whole installation plate can be adjusted before and after installation.
7.仿威圖柜表面處理：柜體，框架和門：脫脂、酸洗、磷化、電泳防水浸蠟底漆、靜電噴塑波紋飾面。
7. Surface treatment of imitation Rittal cabinet: cabinet body, frame and door: degreasing, pickling, phosphating, electrophoretic waterproof wax dipping primer, electrostatic plastic spraying corrugated finish.
